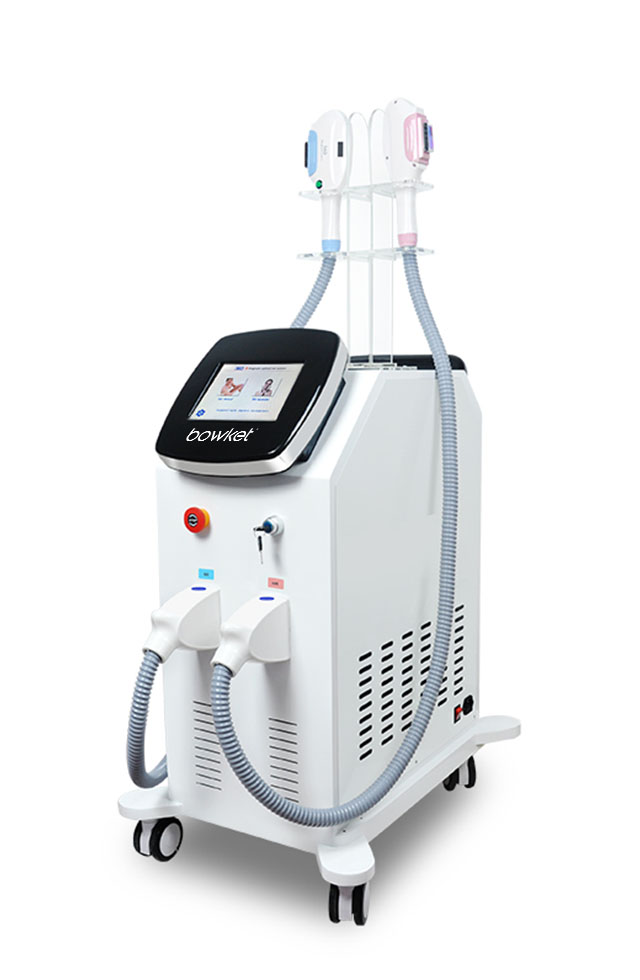

360 magneto-optical ipl&shr&elight machine
Working principle :
360 magneto-optic hair removal freckle removal system can be divided into two parts,
one part is for IPL intense pulse light, and second part is the powerful magnetic energy.
This is the unique technology which can perfect used in Aesthetic Medicine. It break a
medical problem, magnetic energy have a strong penetration ability, it can active and peel melanin cells which adsorbed on the cell wall in the dermis, and peeled melanin were
extracted to the skin surface, IPL absorb the melanin, blasting instantly. The others
melanin are expel from the body by the lymphatic microcirculation metabolism. So, this technology can combine magneto energy with IPL intense pulse light , this is the perfect  solution for facial pigmentation.

1)Applications
Hair removal; Skin rejuvenation; Wrinkles reduction; Skin tightening; Lightening and eliminating acne; Increasing skin elasticity; Vascular removal; Curing telangiectasis; eliminating freckles, pigmentations, age spots, sun spots, etc.

2)Advantages of magneto E-light
3)Big high-definition touch screen. Easy, safe and convenient to operate,360 degree touch skin,better treatment,better result.
 It has 3 cooling systems, which makes the treatment safe, fast, and high-effective.
The energy output is 10 times higher than OPT/SHR;

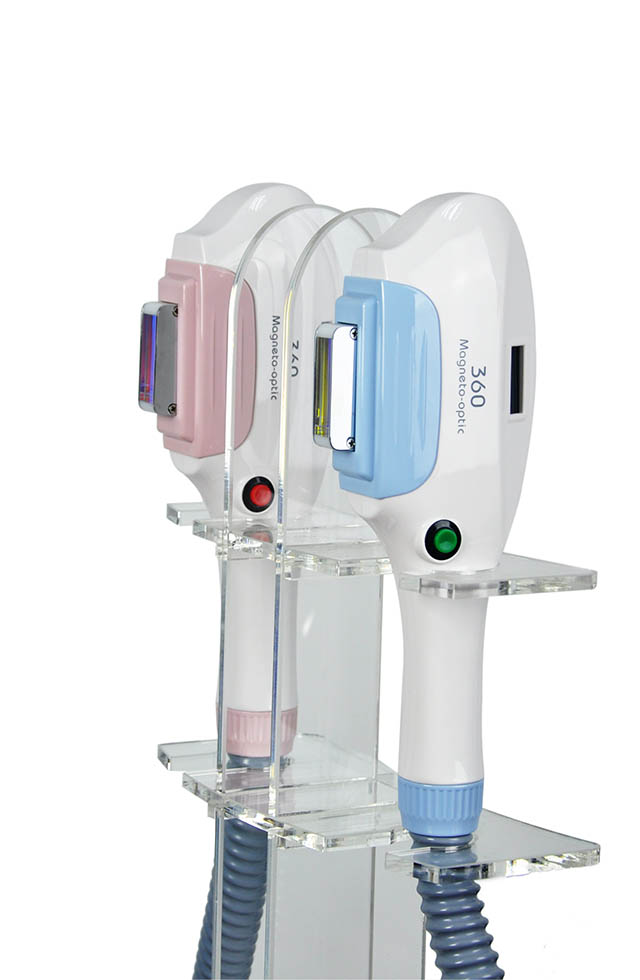

Magneto-optic handle: No need replace filter, the machine automatically select the wavelength required.big spot 15*3mm0&15*50mm optional
The magneto-optic handle’s life time is longer than OPT/SHR.shot:400,000 more;touch skin better
3)Technical Paramerter:

IPL system
IPL energy density:1-50J/ cm2
IPL Frequency:1-4s
Pulse No.1-6
Wavelength:640nm standard
Spot size:15*50 mm2
E light system:IPL energy density:1-50J/ cm2
RF energy density:1-50J/ cm2
IPL Frequency:1-4s
Wavelength:480nm,530nm,590nm,640nm,690nm standard.
Spot size:13*30 mm2, 13*40 mm2 optional
Bipolar RF system:
RF energy density:1-50J/ cm2
RF Frequency:6MHz
RF delay:100-1500ms
Interval:1-4s
Spot size:20/28/35m dia.
Nd-yag laser system:
Laser energy:1600mj
Probe:1064nm /532nm , (skin rejuvenation probe for optional)
Instruction light:Imported infrared ray indicator
Pulse width:6ns

Frequency:1-6Hz
Spot Diameter:4-8mm
Machine Specification:
Display:8.0inch color touch LCD screen
Cooling system:Japanese semiconductor+air+water+cooling gel
Output power:2500W
Voltage:220v(110v)/15A 50Hz (60Hz)
Machine size:51*55*111cm
Gross weight:68kgs
